2.6" V7 Serial: UART/I2C/SPI True Color 320x240 IPS Display+16MB Flash DS3224IPSV7-66F16

Use Digole, Make Electronics Simple!

Hardware Specification:

Design the interface on this display by using Digole's online emulator in few minutes(https://www.digole.com/digole-emu.php)

HIGHLIGHT FUTURE:

• Works with 2.7V/3.3V/5.0V logic systems, 4bit/8bit/16bit/32bit micro-controllers. it EVEN works stand-alone.

• Support serial (Hardware or Software): UART, I2C and SPI, set by the jumpers on PCB, support all four SPI mo.

• 7 fonts and graphic engine embedded, touch screen and flash chip drivers embedded(if touch screen or 2 to 16MB flash chip installed), custom fonts can be downloaded to the module's flash.

• Firmware upgrade-able and custom-able: Visit Digole's firmware upgrade page.

• High level commands set (61 commands total) are easy to remember and understand, eg.: send 5 bytes: "CCabc" will draw a ratio=c pixels circle at coordinate (a,b) on the screen; 5 bytes "DNALL" will put the module to sleep mode(<0.1mA), and more...

• Online forum and technical support: Visit the Forum of Digole Serial Dispaly Module

• Video clips on youtube.

• Program manual, sample code and library for multiple platform.

• Multiple online tools to make custom fonts, convert images and more, accelerate product development.

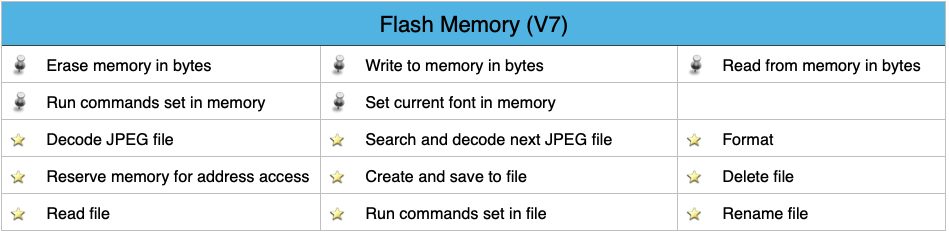

Here is the brief of functions of command that applied on this module:

The following pictrue for reference only:



Download Programing Manual
Download Arduino lib and demo code
Other lib and sample code

Online tools:

Convert image to Digole(u8g) user fonts
All other online tools from Digole

Watch Arduino Demo Code Video on Youtube

Digole Serial Display List

Model	Read-able Under Sun	Matix	Product Size (WxHxT mm)	View Area(mm)	Display Technology	Backlight	Weight(g)	Touch Screen	Onboard 2~16MB Flash
Monochrome Display Module
DS24064LCD-1		240x64	150x57x14	113x30 (4.6")	B/W Transflective LCD	NO	120
DS240160LCD-YB		240x160	79.7x70x8.5	62.6x43.3(3")	8 Gray Scale Transflective LCD	White,Adjustable	55
DS12864LCD-7		128x64	82x52x6	71x35.5 (3.1")	B/W Transflective LCD	NO	30
DS12864LCD-6		128x64	72x49x9	61x30.5 (2.7")	B/W Transflective LCD	Yellow-Green	23
DS12864LCD-5		128x64	58.6x39.5x11.5	48.6x24.5	B/W Transflective LCD	White	23
DS12864LCD-4		128x64	46x40x6	42x21 (1.8")	B/W Transflective LCD	White	9
DS160120LCD-51(F)		160x120	52x52x7.5	40.5x30.5(2.0")	B/W Transflective LCD	White,Adjustable	23		Optional
DS12864OLED-3W		128x64	34x30x5	30x15 (1.3")	OLED-White	-	5
DS12864OLED-3B		128x64	34x30x5	30x15 (1.3")	OLED-Blue	-	5
DS12864OLED-2W		128x64	30x30x5	22x11 (0.96")	OLED-White	-	4
DS12864OLED-2B		128x64	30x30x5	22x11 (0.96")	OLED-Blue	-	4
DS9696OLED-G		96x96	31x33x4.5	20.7x20.7(1.12")	OLED-Green	-	5
DS12864LCD-UNA		128x64 Universal LCD Adapter for most KS0108, ST7920 and ST7565 LCD controller
Color Display Module
DS9664COLED-20		96xRGBx64	31x29x4.4	20x13.3 (0.96")	OLED-RGB 65K Color	-	4.5
DS160128COLED-46(F)		160xRGBx128	53x38x5	36x28.7 (1.8")	OLED-RGB 262K Color	-	12		Optional
DS160128CTFT-46		160xRGBx128	53x38x5.7	36x28.7(1.8")	TFT LCD -RGB 262K Color	Adjustable	14		Optional
DS320240CIPS-20(F)		320xRGBx240	62.5x36.7x5.4	41.5x31.1(2")	IPS(Super TFT)  262K Color	Adjustable	16		Optional
DS320240CTFT-56(TF)		320xRGBx240	61x44x5.7	43.5x34.8(2.2")	TFT LCD -RGB 262K Color	Adjustable	16	Optional	Optional
DS320240CIPS-24(TF)		320xRGBx240	70x43x5.6	49x36.8(2.4")	IPS(Super TFT) 262K Color	Adjustable	17	Optional	Optional
DS320240CIPS-26(TF)		320xRGBx240	46x73.8x5.4	53x39.5(2.6")	IPS(Super TFT) 262K Color	Adjustable	23	Optional	Optional
DS320240CIPS-35(TF)		480xRGB320	54x93.5x6.2	49.4x74.1(3.5")	IPS(Super TFT) 262K Color	Adjustable	45	Optional	Optional
DS800480CIPS-43(TF)		480xRGBx800	62x115x6.4	56.9x94.8(4.3")	IPS(Super TFT) 262K Color	Adjustable	60	Optional 	Optional
NOTE: The Backlight Adjustable means the brightness of backlight can be adjusted by software
