Specification:
- Power Supply: 3.0V to 7.0V
- Power consumption: 0.5mA to 125mA (at 5V when backlight full on)
- Communication mode: UART/I2C/SPI, detect your setting automatically
- Receiving buffer: 2048 bytes
- Work with all microcontroller and microprocessor
- Communication signal can work on 3.3V and 5.0V TTL
- Default setting: UART baud 9600bps, I2C 0x27 address
- UART baud (bps): 300, 1200, 2400, 4800, 9600, 14400, 19200, 28800, 38400, 57600, 115200, 203400, 406800.
- View area:40.5x53.0mm
- 2MB On board Flash memory
|
- Pixels: 320xRGBx240, 262K colors
- Screen size: 39.5x53mm

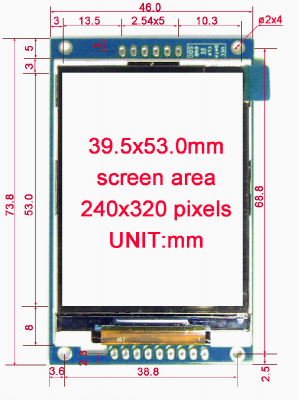

- Product size: (WxHxD):46x73.8x5.4mm (1.81X2.9x0.21")
- Simple command sets, easy to remember
- Simple graphic engine integrated
- 7 preloaded fonts, font’s data structure full compatible with U8Glib
- Commands Backward compatible with mono Digole serial display, replace other Digole serial display seamless.
- Special commands to set color and draw color image, you can display 256 color image with 262K true color image on same screen.
|
Design the interface on this display by using Digole's online emulator in few minutes(https://www.digole.com/digole-emu.php)
HIGHLIGHT FUTURE:
- Works with 2.7V/3.3V/5.0V logic systems, 4bit/8bit/16bit/32bit micro-controllers. it EVEN works stand-alone.
-
Support serial (Hardware or Software): UART, I2C and SPI, set by the jumpers on PCB, support all four SPI mo.
-
7 fonts and graphic engine embedded, touch screen and flash chip drivers embedded(if touch screen or 2 to 16MB flash chip installed), custom fonts can be downloaded to the module's flash.
-
Firmware upgrade-able and custom-able: Visit Digole's firmware upgrade page.
-
High level commands set (61 commands total) are easy to remember and understand, eg.: send 5 bytes: "CCabc" will draw a ratio=c pixels circle at coordinate (a,b) on the screen; 5 bytes "DNALL" will put the module to sleep mode(<0.1mA), and more...
-
Online forum and technical support: Visit the Forum of Digole Serial Dispaly Module
-
Video clips on youtube.
-
Program manual, sample code and library for multiple platform.
-
Multiple online tools to make custom fonts, convert images and more, accelerate product development.
Here is the brief of functions of command that applied on this module:
The following pictrue for reference only:
